Emtek Pocket Door Mortise Lock Template

Emtek s pocket door mortise hardware is available in a privacy passage dummy and keyed function.

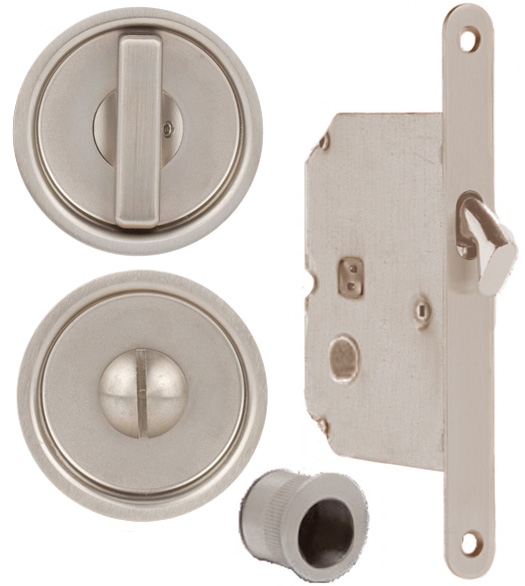

Emtek pocket door mortise lock template. Single cylinder units are commonly used on a front side or back entrance but can also be found on interior doors as. Give your pocket doors a clean contemporary trim style with a high quality lock. Emtek narrow modern rectangular pocket door mortise lock. Special door preperation is required for this set. You must choose the function when ordering.

Installer must use a 13 16 od template guide on the router 1 2 cutter to produce the deep pocket mortise. This is the whole process from start to finish. For mortise box 111 16 door jamb prep 7 8 depth door e d g e o f d o o r cl llock c 1 16 deep for strike plate 13 16 39 16 pocket door mortise hole preparation keyed privacy note. Thread drive bar cylinder inside 5. 7 8 81 16 note.

Sold as complete set includes screws and strikeplate for pricing information contact any emtek dealerclick here to learn more about modern rectangular pocket door mortise lock. Reproduction in whole or in part without the express written permission of emtek products inc. Hardware prep for halliday ballie hb 690 privacy lock body and edge pulls. Perfect for bedrooms and bathrooms this one way solid brass lock will be custom built to your precise specifications. Install inside and outside plates note.

When mortising for the deep center pocket with your router mortise between the two red block off tabs shown in the photo. 8 1 2 x 11 copy of this template not to scale. Emtek s keyed entry single cylinder pocket door locks are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Installation guide modern pocket door mortise lock outside in4 mrpcktmrts rev 16a see template for door prep specifications 1. Door edge finish mortise 7 8 x 8 1 16 with a deep pocket mortise of 11 16 x 6 3 4 for the lock body.

Classic pocket door mortise lock body dimensions specifications modern rectangular pocket door mortise locks dimensions specifications. Emtek pocket door lock functions. Drive bar socket must be in the 12 o clock position as shown. This template is designed for 1 1 2 thick door. 5 8 61 4 1 2 2 3 16 x 6 1 4.

This updated design has a d ring thumbturn for easy operation and a through bolt lock body for quick installation. Keyed entry single cylinder function. Please see emtek mortise pocket door template for details. This pocket door lock requires special door preparation. Site made jig done in place onsite.

A wide selection of beautiful finishes. Following the success of the modern rectangular design collection emtek is introducing this same sleek style for pocket door mortise locks.
